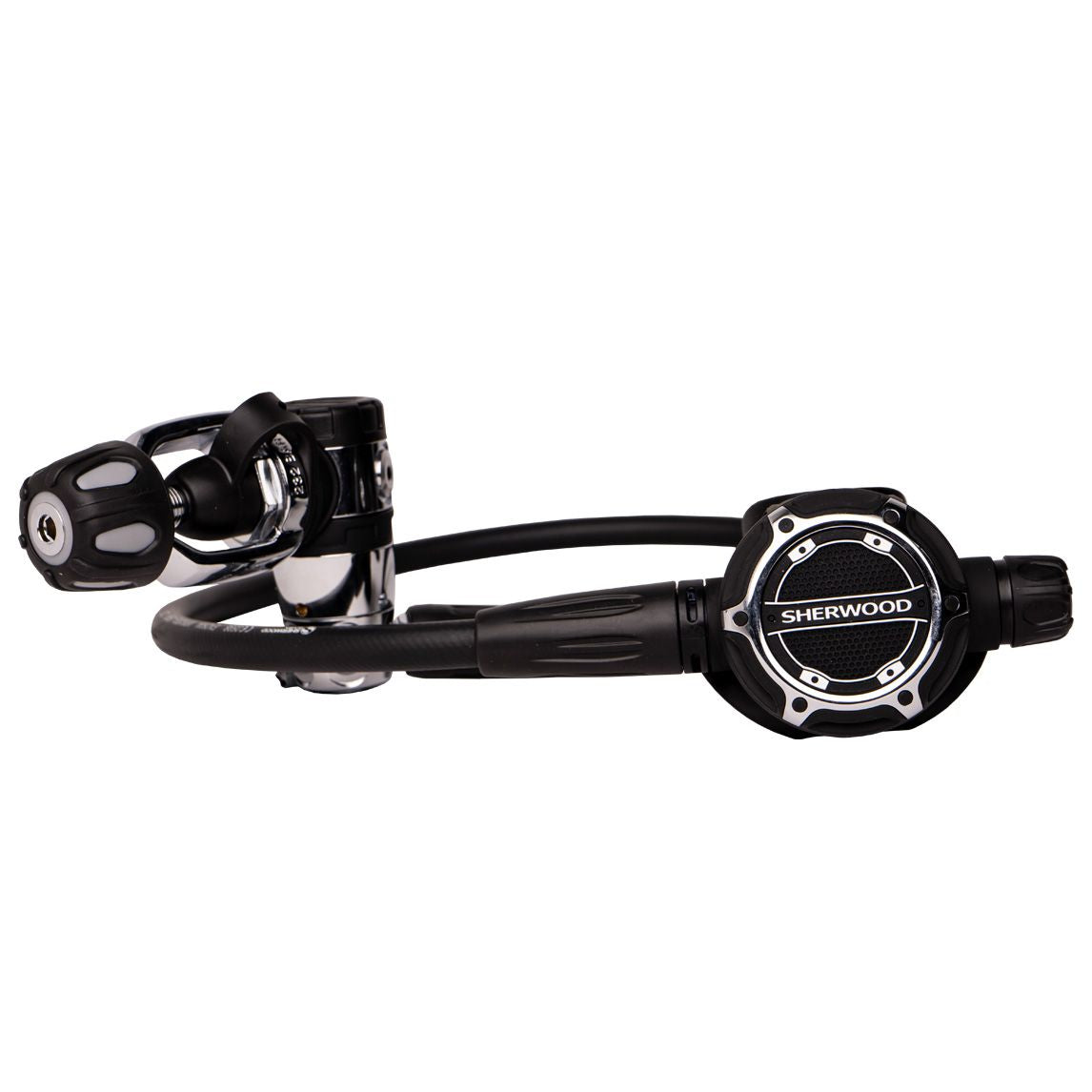

SHERWOOD SR2 REGULATOR SET

Sale price$26,280.00

color:
style: YOKE
Product mix: first level head and main second

This model is the most popular choice among military, police and firefighting units around the world.

SHERWOOD SR2 diving regulator is currently the "only" one on the market that has an environmental sealing function and is completely dry inside.

It also has a piston-balanced super adjuster with a depth compensation mechanism.


Whether you are a beginner diver who has just started to contact the underwater world, or an experienced professional diver,

SHERWOOD SR2 diving regulators are worthy of your trust!

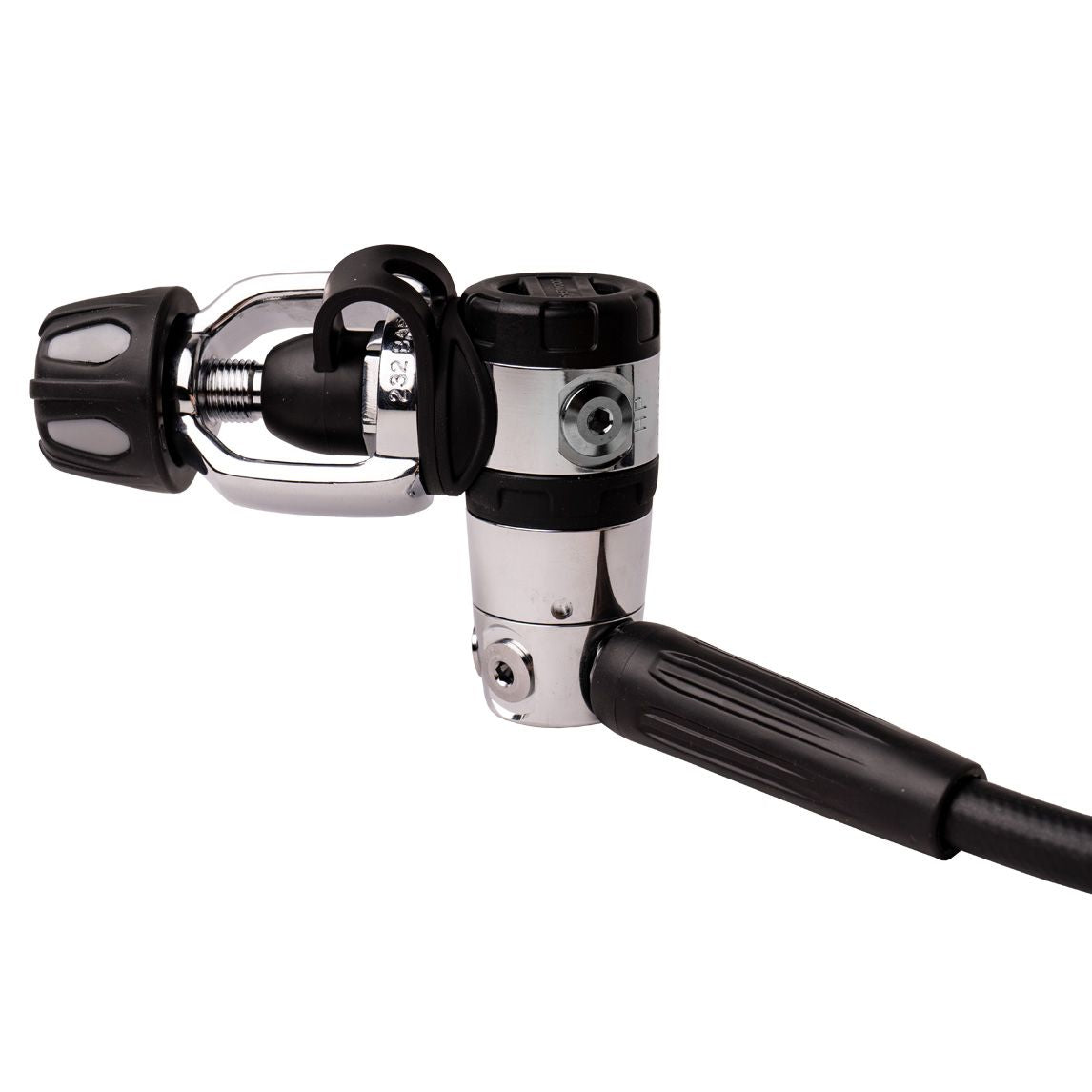

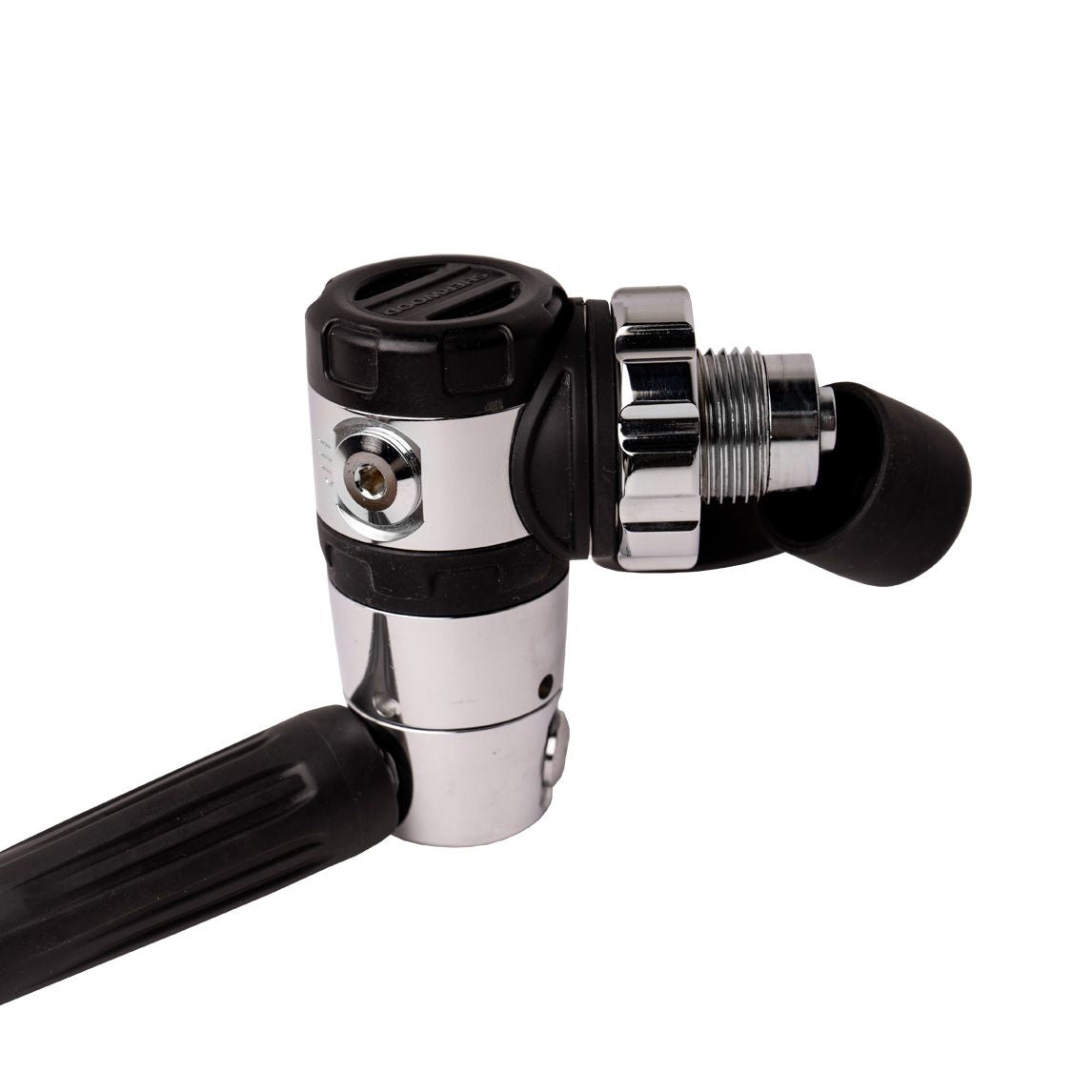

Description of first-level features:

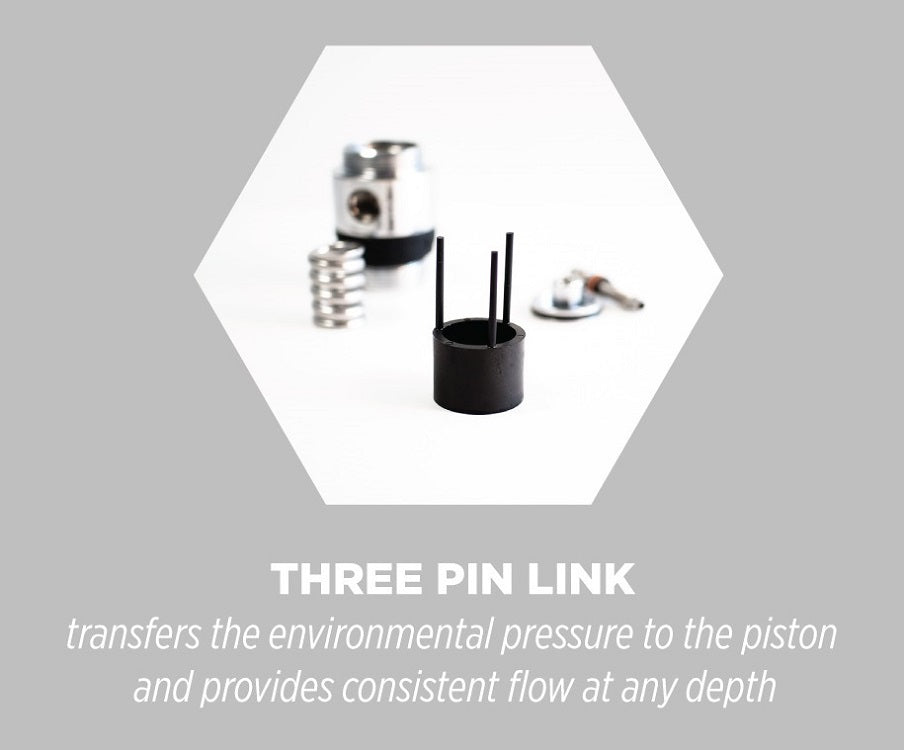

Sherwood exclusive technology: Three Pin Link (3PL) three-pin link design

It can transmit precise environmental pressure in the water to the piston.
A comprehensive balance is achieved using a combination of flat soft diaphragms, metal plates and a solid interior to connect and communicate external pressure.
Using this design, Sherwood successfully launched the first flow-through piston regulator, which can maintain an environmental seal and achieve a dry state Pneumatically Balanced Flow-Thru Piston.

✓ Environmentally sealed and completely dry inside Pneumatically Balanced Flow-Thru Piston

✓ Suitable for various changing diving environments: for example – engineering environment diving, fire and disaster relief diving, etc.

✓ Two-piece piston: precise control for optimal balance and medium pressure

✓ 2 high pressure ports

5 low-pressure ports of 360 ° rotating SWIVEL ( universal rotary joint ) : providing a variety of connection options and convenient pipeline configuration

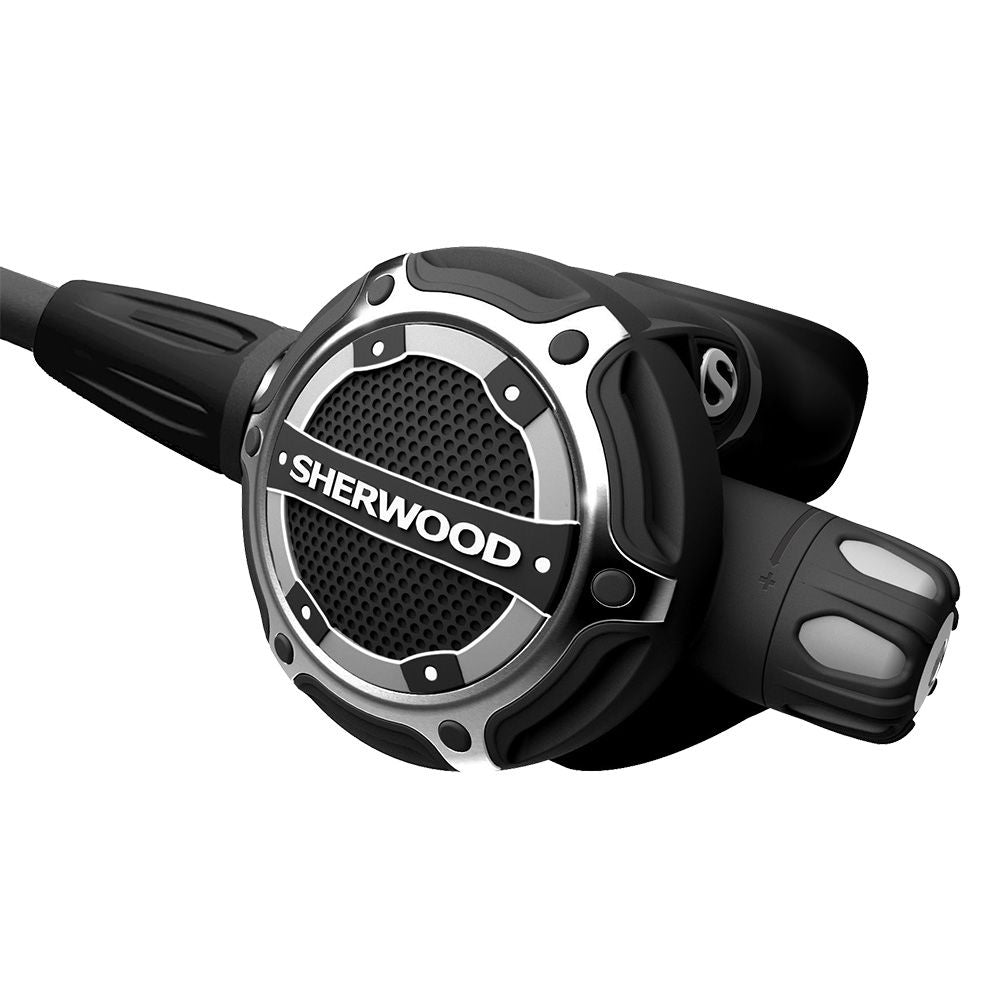

Second stage feature description:

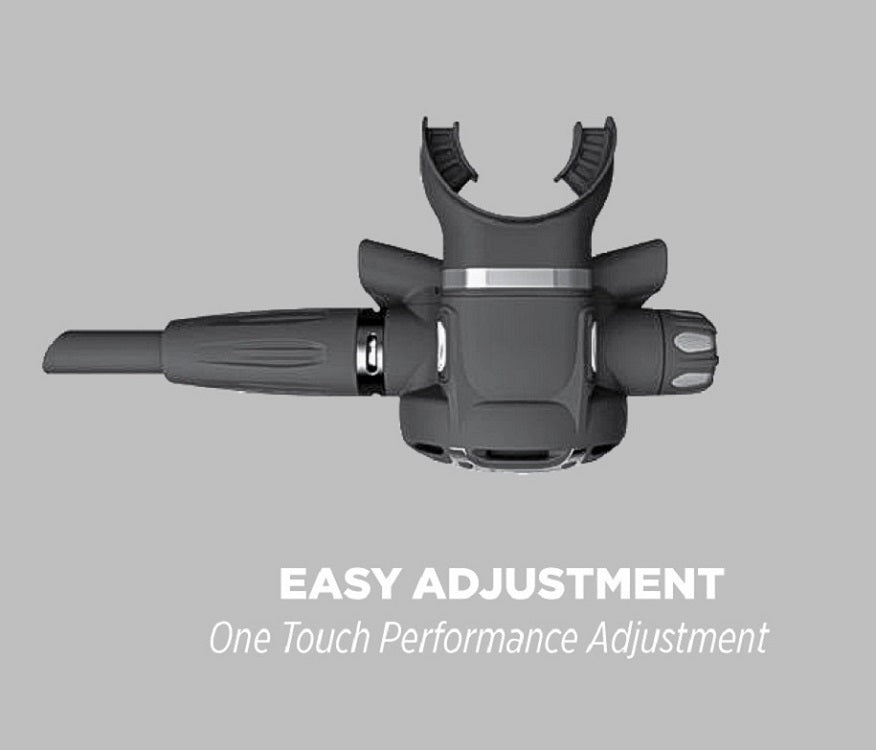

One Touch Performance Adjustment (OTPA) one-touch adjustment button

Two states can be controlled simultaneously: Venturi effect and breathing resistance.
On the water, the OTPA can be rotated clockwise to disperse the airflow, reduce the Venturi effect and slightly increase breathing resistance,

Once submerged, this operation will make the second-stage regulator more stable and reduce the air pressure flowing around.
During the dive, you can rotate the OTPA counterclockwise according to your personal needs and adjust it to the smoothest breathing state.

Seat Saving Floating Crown (SSFC)

The design of the suspended seat crown is mainly to establish a protection mechanism, which can reduce the compressive load on the high-pressure seat when the valve is closed, and effectively extend the service life of the high-pressure seat.

✓ Pneumatically balanced second stage allows you to breathe smoothly underwater Pneumatically Balanced Valve

✓ Smooth exhaust valve for effective and stable exhaust

✓ Diver-adjustable breathing knob: Customize your most comfortable breathing experience. Turn clockwise to reduce airflow, and turn counterclockwise to increase airflow.

✓ Super soft and super flexible pipeline: convenient for use in various diving environments

【Product specifications】

✓ Maximum operating pressure: 3500 psi

✓Marine Grade Chrome Plated Brass

✓ Stainless steel spring

✓ 5 3/8” 24W UNF-2B low voltage ports

✓ 2 7/16” 20W UNF-2B high voltage ports

✓ Stable output range is 135 ~ 145 psi @3000 psi


【Color】
Silver
