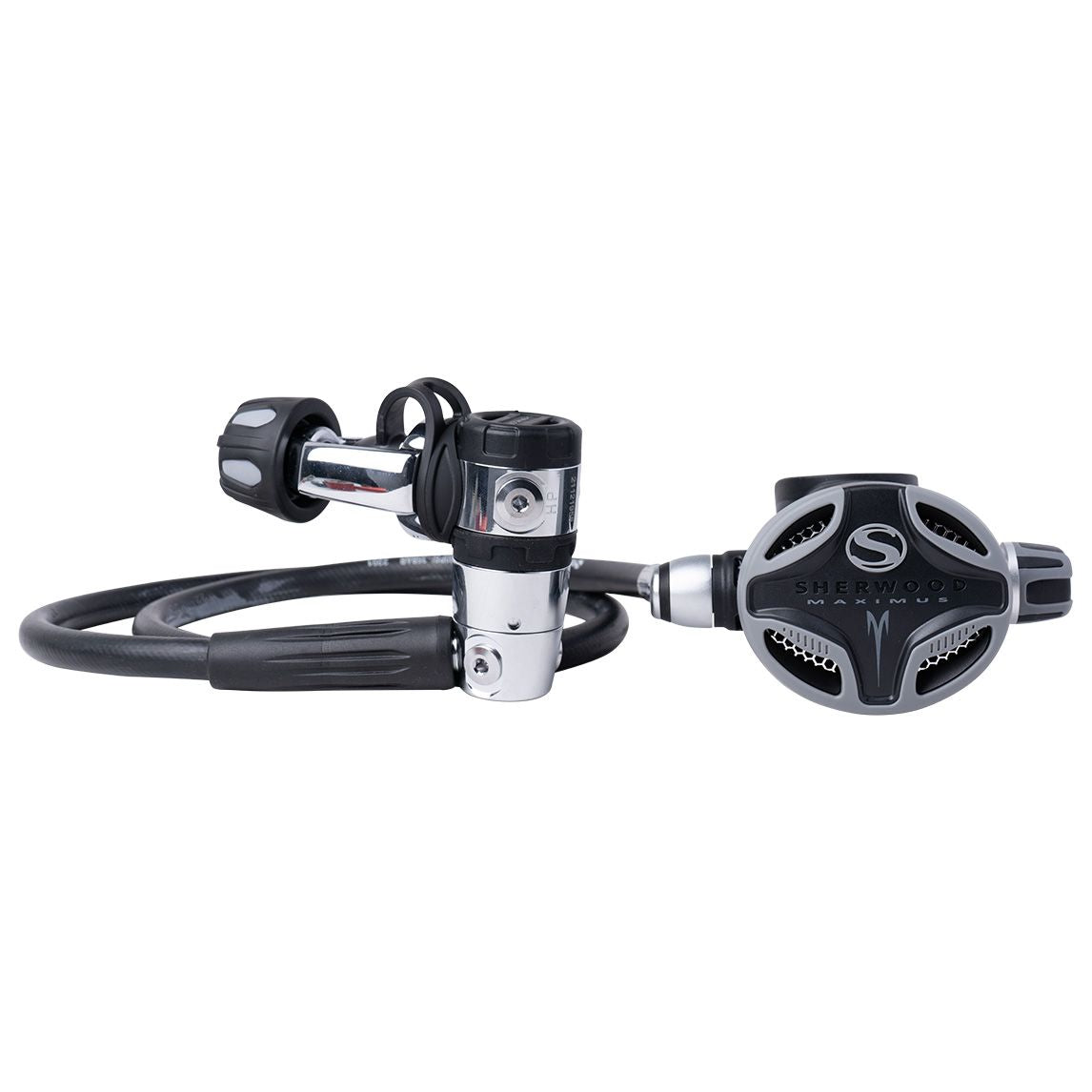

SHERWOOD MAXIMUS PRO REGULATOR SET

Sale price$26,680.00

Specification: Yoke

A must-have item for top professional divers and expert players.

Sherwood's unique features such as underarm swivels, extended 42-inch hose and the ultimate comfort Wisdom mouthpiece all continue Sherwood's classic design excellence.

Coupled with new innovative elements such as: OTPA one-button adjustment knob, SSFC floating seat crown, high-performance valve design and oversized exhaust valve cover, you will experience unprecedented diving comfort.

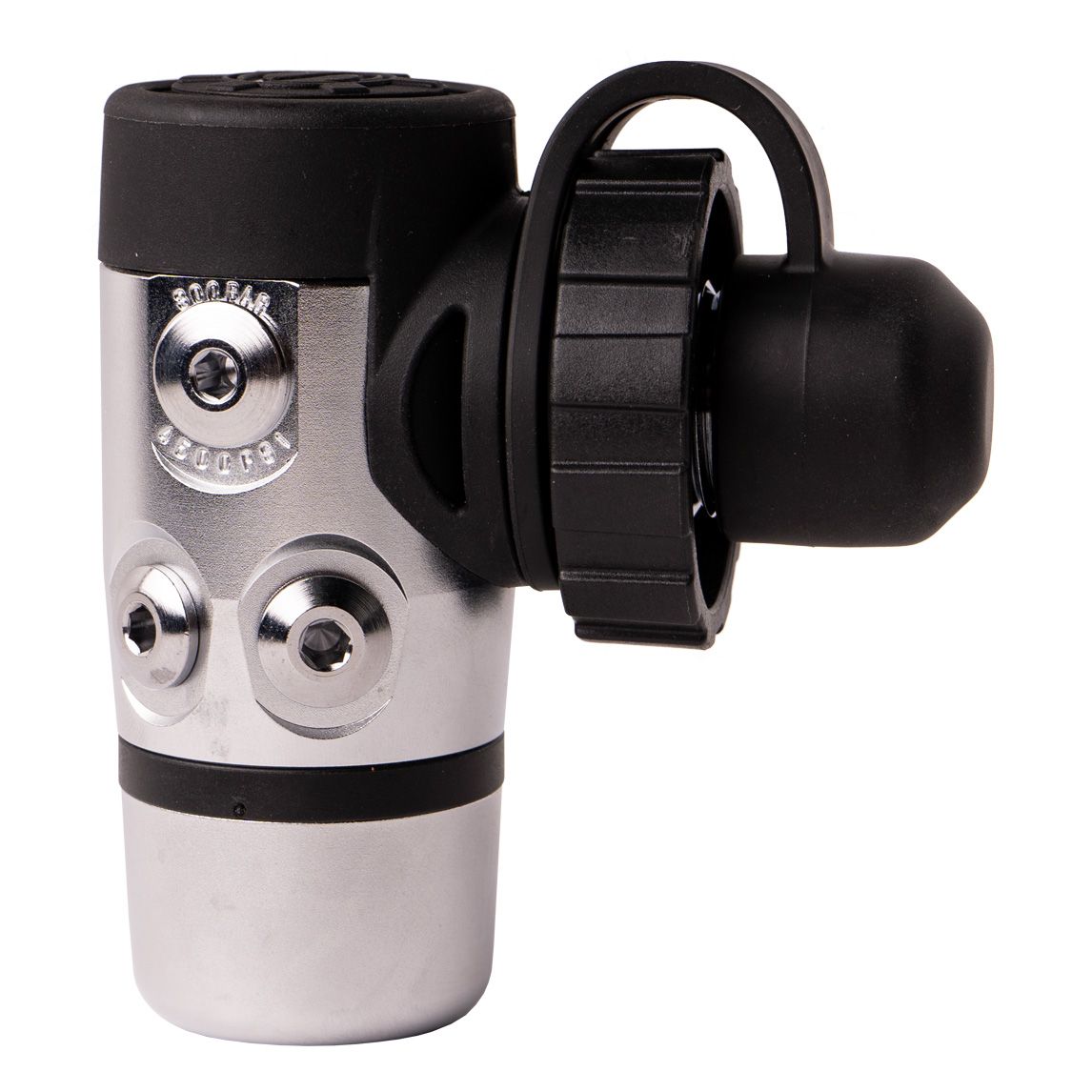

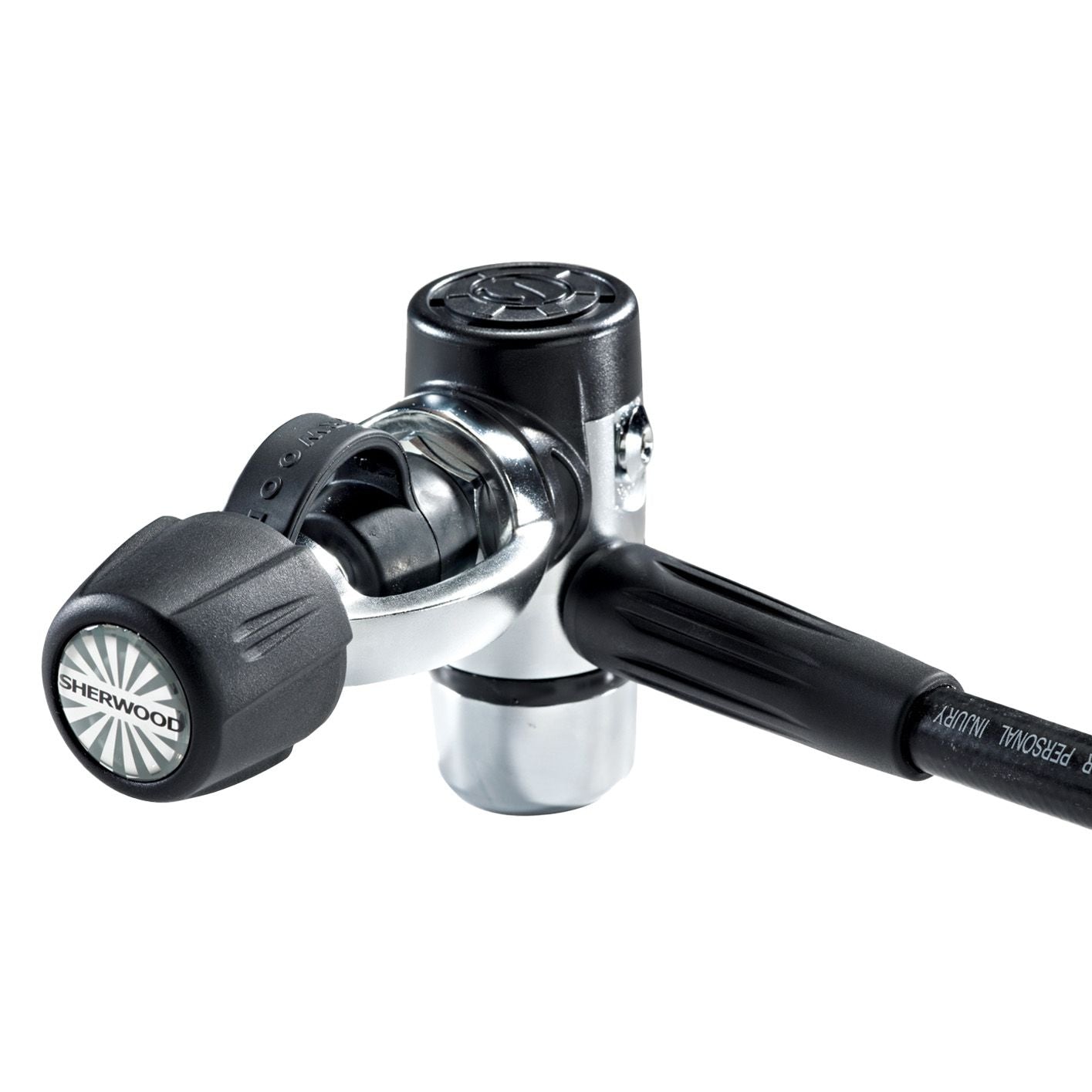

Description of First-Level Features:

Sherwood exclusive technology: Three Pin Link (3PL) three-pin link design

It can transmit precise environmental pressure in the water to the piston.
A comprehensive balance is achieved using a combination of flat soft diaphragms, metal plates and a solid interior to connect and communicate external pressure.
Using this design, Sherwood successfully launched the first flow-through piston regulator, which can maintain an environmental seal and achieve a dry state Pneumatically Balanced Flow-Thru Piston.

✓ Environmentally sealed and completely dry inside Pneumatically Balanced Flow-Thru Piston

✓ Suitable for various changing diving environments: for example – engineering environment diving, fire and disaster relief diving, etc.

✓ Two-piece piston: precise control for optimal balance and medium pressure

✓ 2 high pressure ports

5 low-pressure ports of 360 ° rotating SWIVEL ( universal rotary joint ) : providing a variety of connection options and convenient pipeline configuration

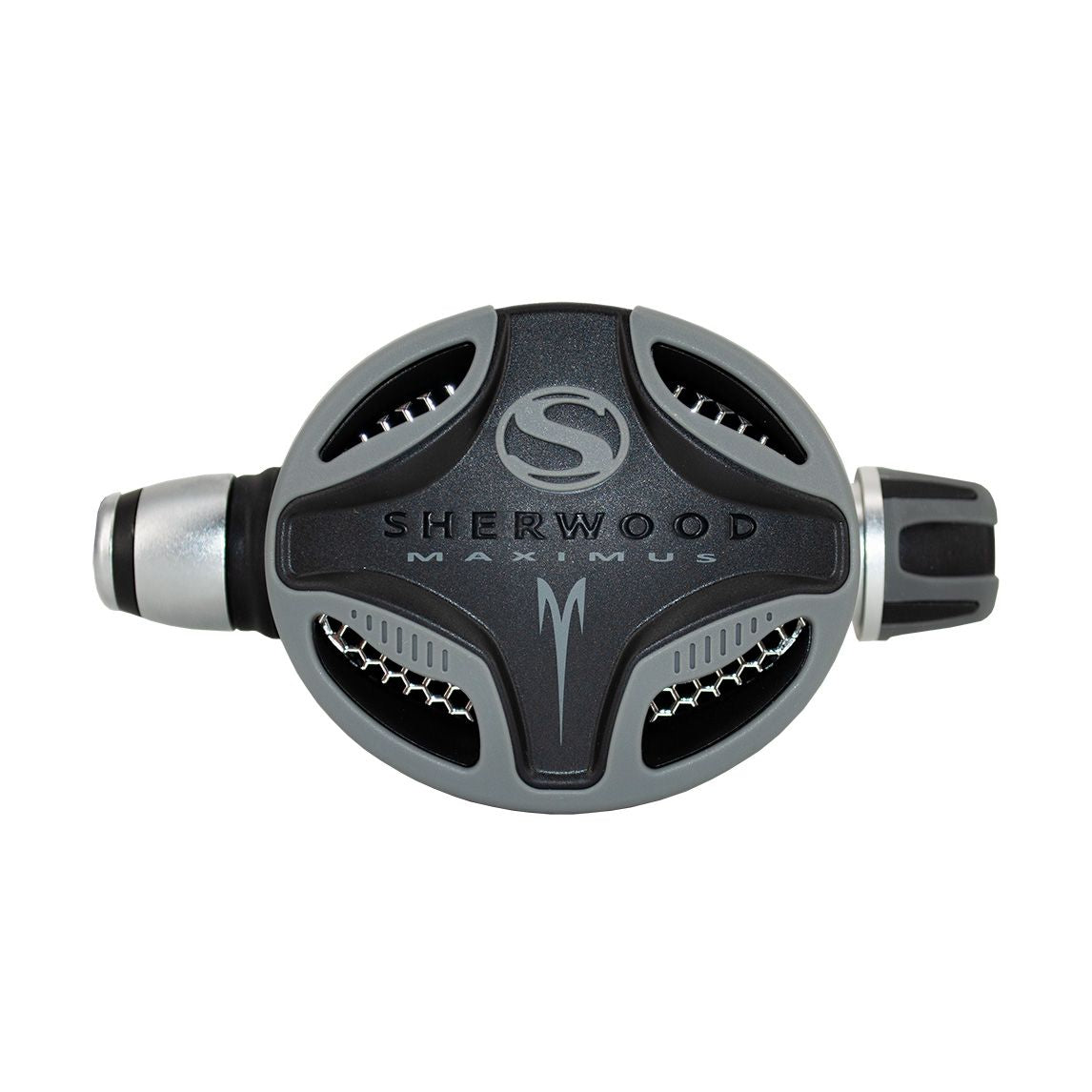

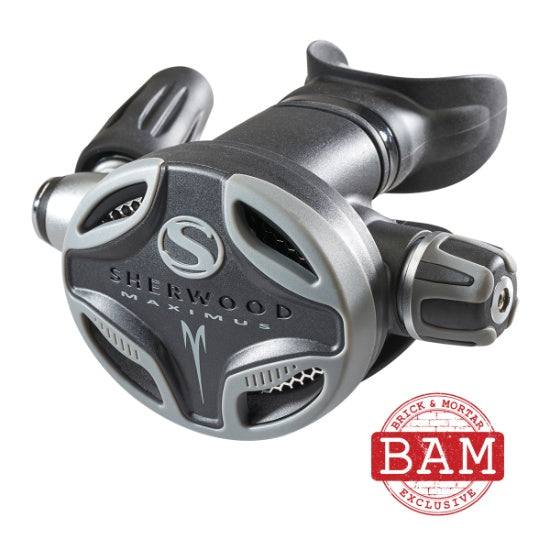

Second Stage Feature Description:

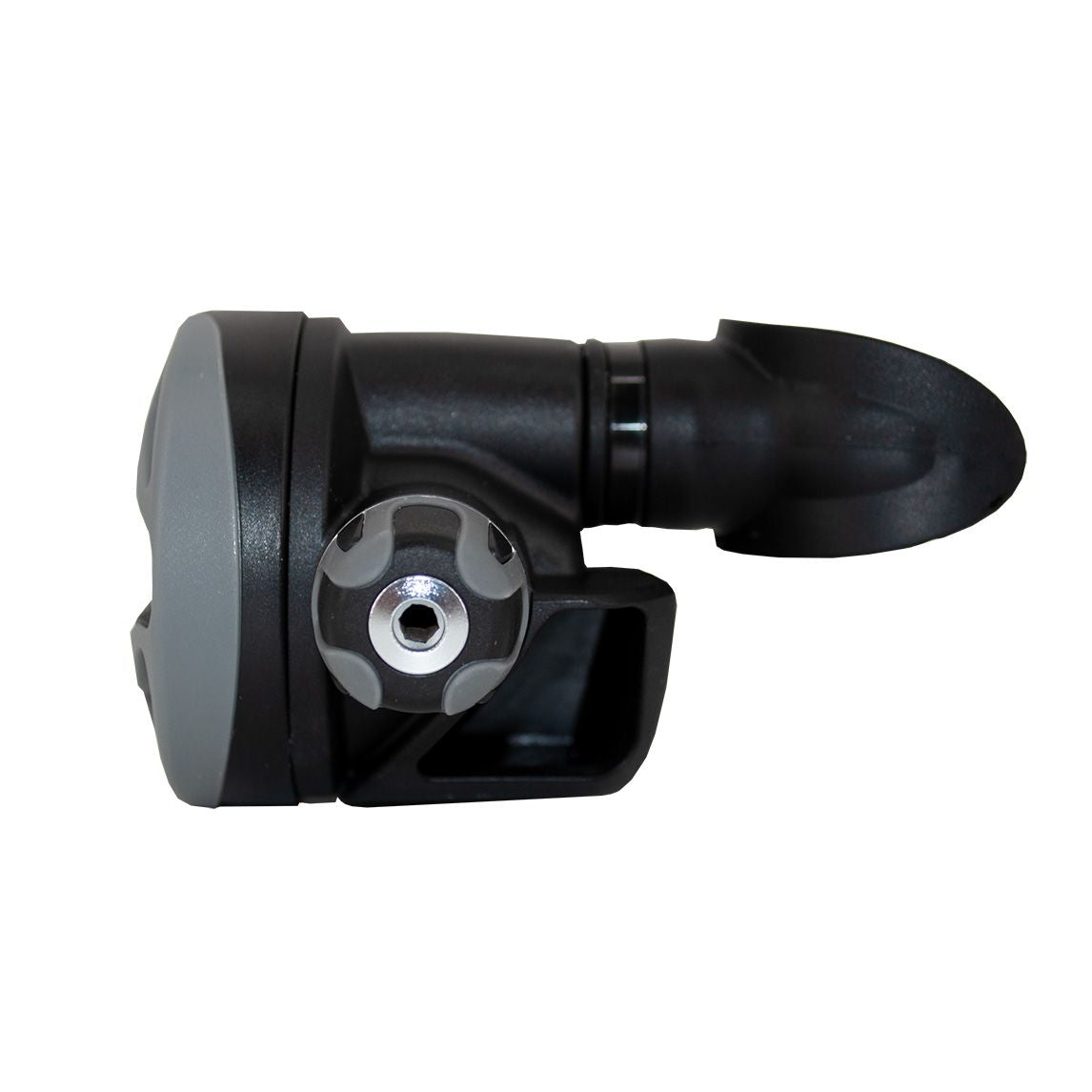

One Touch Performance Adjustment (OTPA) one-touch adjustment button

Two states can be controlled simultaneously: Venturi effect and breathing resistance.
On the water, the OTPA can be rotated clockwise to disperse the airflow, reduce the Venturi effect and slightly increase breathing resistance,

Once submerged, this operation will make the second-stage regulator more stable and reduce the air pressure flowing around.
During the dive, you can rotate the OTPA counterclockwise according to your personal needs and adjust it to the smoothest breathing state.

Seat Saving Floating Crown (SSFC)

The design of the suspended seat crown is mainly to establish a protection mechanism, which can reduce the compressive load on the high-pressure seat when the valve is closed, and effectively extend the service life of the high-pressure seat.

✓Underarm swivel: This design allows the tracheal hose to pass under the armpit instead of the shoulder, making you more streamlined underwater. Especially in a small space, there is no need to worry about the problems and risks of traditional external throw line routing, allowing the adjuster to match the mouth shape more naturally.

Extended 42-inch hose: The longer hose passes under the armpits, giving you a freer and more comfortable diving experience.

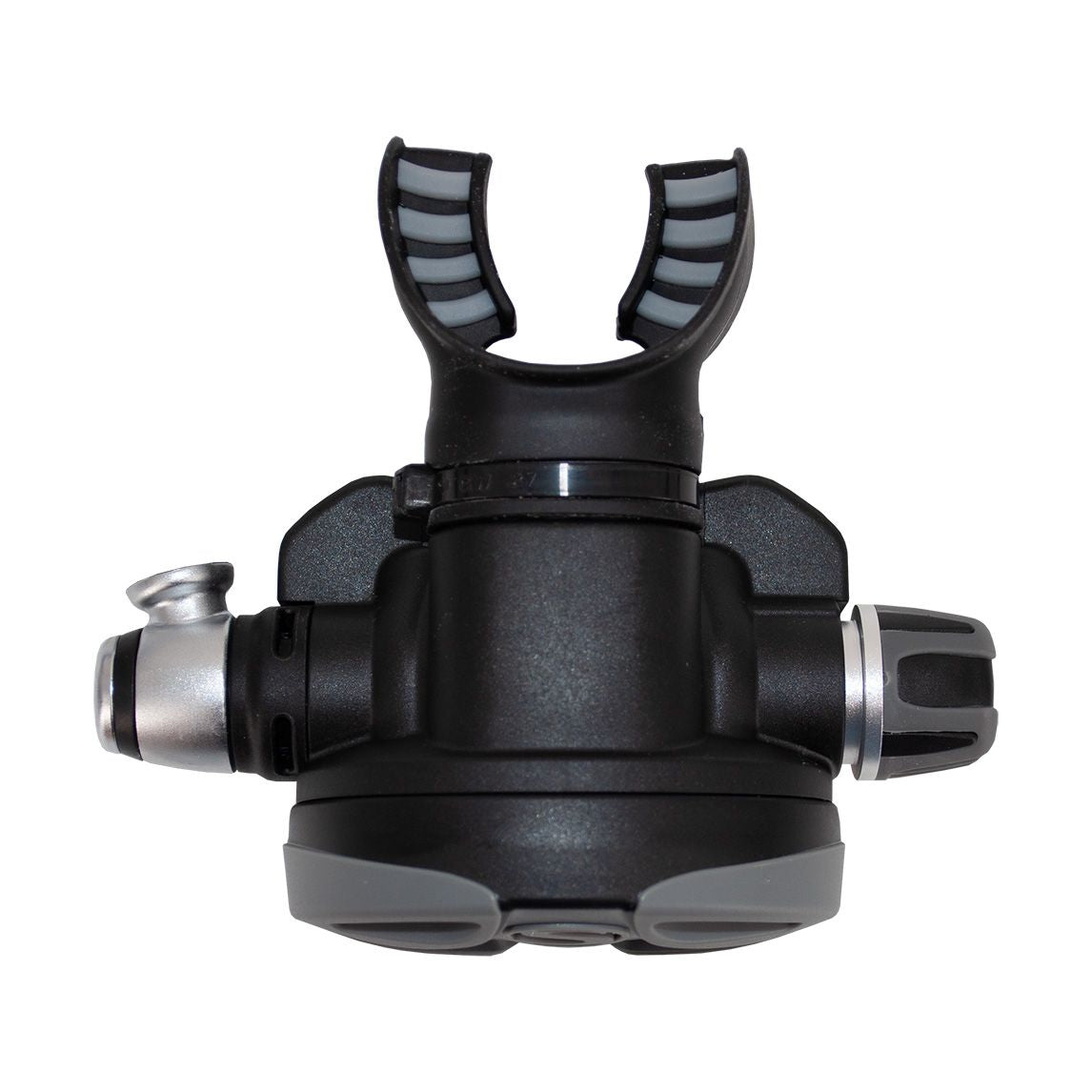

Wisdom Mouthpiece: The specially designed mouthpiece allows your teeth to hold the second stage valve more stably, reducing jaw fatigue. Silicone design with different hardness enhances comfort.

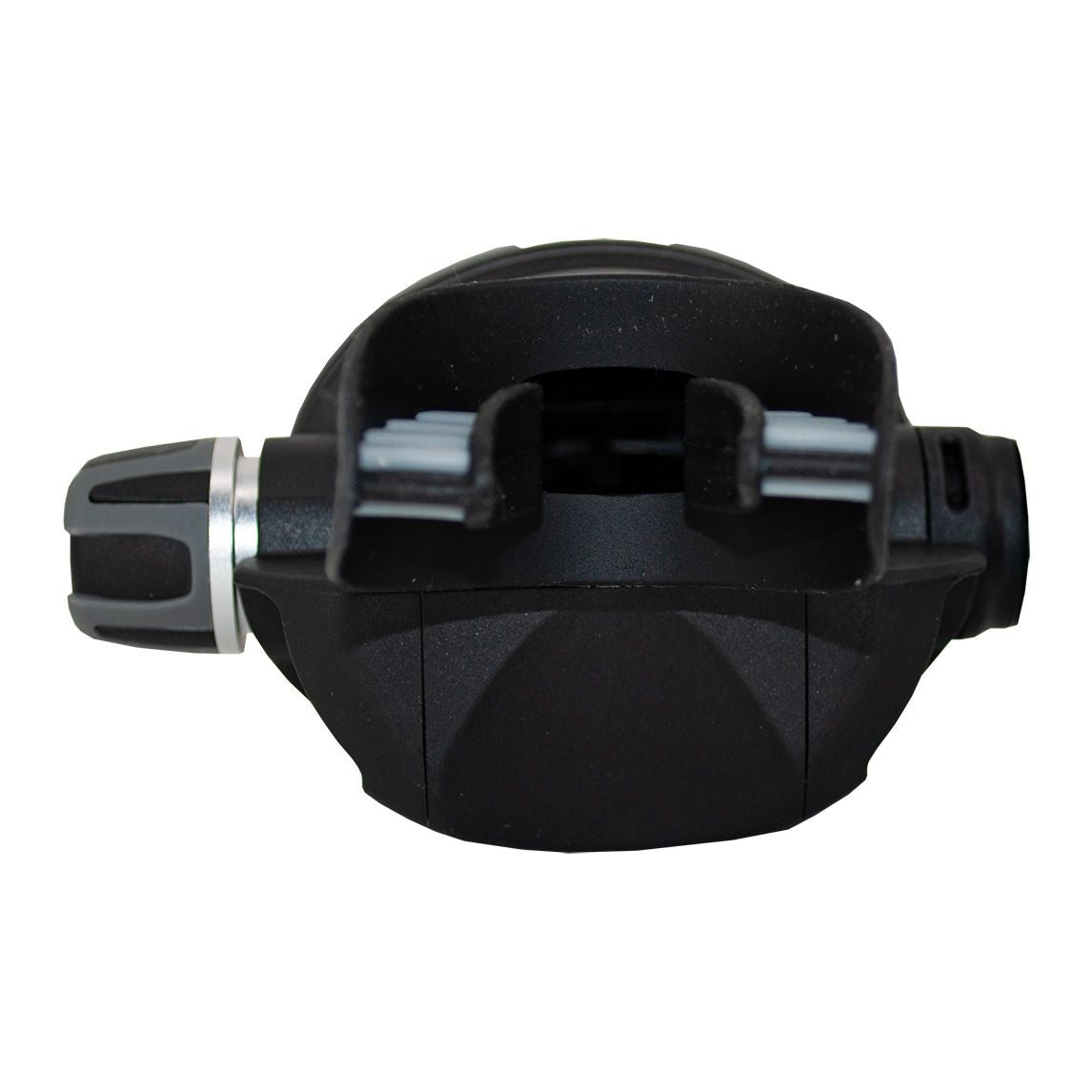

✓Extra -large exhaust valve cover: The extremely large exhaust valve ensures optimal water flow from the rear, making the diaphragm extremely simple to operate, even under strong flow.



【Product Specifications】

✓ Maximum operating pressure: 3500 psi

✓Marine Grade Chrome Plated Brass

✓ Stainless steel spring

✓ 5 3/8”24W UNF-2B low voltage port

✓ 2 7/16” 20W UNF-2B high voltage port

✓ The stable output range is 135 ~ 145 psi @3000 psi

✓ Specifications: Yoke style





【Color】
Silver
